Raid 1 Technology
RAID 1 is like a backup for your backup. It causes the drives in your storage device to mirror each other, so if one drive fails the unaffected drive will continue to function until the failed one is replaced.
Web File Server and FTP Server
The DNS-325 includes a built-in Web File server and FTP server to make accessing files remotely, over the Internet, a breeze. The FTP server will come in handy when you need to share a file too big to e-mail to a friend.
This ShareCenter device has a built-in media server that can stream your photos, music and videos to all of the computers in your home and to compatible media players like Boxee Box, Xbox and PlayStation 3 so you can enjoy it all on your TV.
10/100/1000 Gigabit Port
The 10/100/1000 Gigabit Ethernet port gives you blazing fast speeds so you can back up and access your data without the wait.
There’s no overheating in this device’s future. It comes with a quiet, built-in cooling fan that only comes on when needed, saving you power and money.
D-Link Easy Search Utility
The D-Link Easy Search Utility allows you to locate your ShareCenter from anywhere on the network and map your network drive so it will conveniently appear in "My Computer" on your PC.
The included feature-rich backup software allows you to create schedules and rules including full or incremental backups.
Not quite the handyman? That’s ok. You can insert an additional hard drive without using any tools or attaching any cables.
This product allows hard drives to enter sleep mode when not in use to conserve electricity and prolong the life of the hard disk. Plus, it uses recyclable packaging and complies with the European Union’s RoHS directive.
USB Print Server Port
This storage device can also serve as a USB print server, allowing you to share a single USB printer over your network. The USB port can also support a Universal Power Supply (UPS) monitor that supports ‘smart’ signaling over a USB connection. If a power outage were to occur, the compatible UPS monitor would allow the UPS unit to safely shut down the ShareCenter.
AjaXplorer is a file explorer that allows you to remotely manage your files using a web browser. Stay protected - anywhere, anytime.
Not to worry, Mac users! ShareCenter can back up your data regardless of your computer's operating system (Windows, Mac or Linux)
- AFP (MAC)
- Time Machine (MAC)
- NFS (Linux)
Are you tired of sending individual photos through email? The ShareCenter Photo Center app provides a convenient interface from which you can create and share photo albums with friends and family easily over the web.
Stream music throughout your home. The Audio Streamer allows you to transmit multiple streams of audio to any device with an Internet connection, whether it be your computer, TV or tablet.
Logitech Squeeze Center
Connect your Logitech Media Squeezebox player to your ShareCenter and play endless hours of music files stored on your deivce.
Create and host your own customized Blog from your ShareCenter device. Access and comment on it from anywhere you have an Internet connection.
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3ab 1000Base-T Gigabit Ethernet
- Support Hard Drive Type
- 3.5" Internal SATA Hard Drive
- 1 x 10/100/1000 Gigabit Ethernet
- 1 USB Port
- Drive Management
- Four Different Hard Drive Configurations (RAID 0, 1, JBOD, Standard)
- Drive Status with E-mail Alerts
- Drive Quotas
- Power Management
- Device Management
- Internet Explorer® v6 or other Java-enabled Browsers
- HDD 1
- HDD 2
- FCC Class B
- Power Supply
- External Power Supply
- DC 12V / 4A Switching
- Power Consumption
- Normal Mode: 15.7 W
- Sleep Mode: 8.2 W
- Power Management
- Power Saving
- Schedule Power Off
- Auto Power Recovery Support
- Operating Temperature
- 30º to 104º F (0º to 40º C)
- Operating Humidity
- 10% to 95% Non-Condensing
- Dimensions (W x D x H)
- Item: 4.1” x 7.8” x 5.2” (104mm x 198mm x 132mm)
- Packaging: 8.18” x 10.94” x 7.24” (207.77mm x 277.88mm x 183.90mm)
- Minimum System Requirements
- Computer with:
- • 1GHz Processor
• 512MB RAM
• 200MB of Available Hard Disk Space
• Windows® 7, Windows Vista® or Windows® XP SP2**
• CD-ROM Drive to View Product Documentation and Install Software
- Package Contents

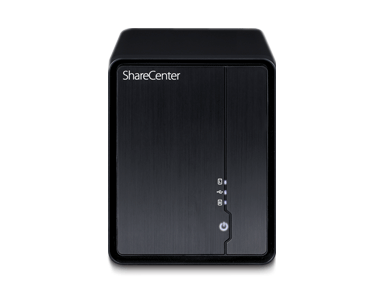

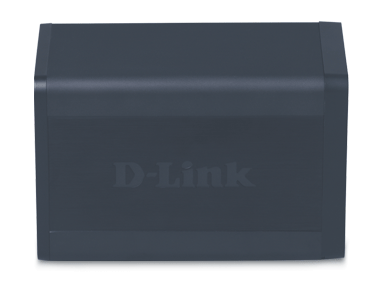

- ShareCenter 2-Bay Network Storage with USB Printer Port
- 1 x 1TB SATA hard drive
- Power Adapter
- Ethernet Cable
- Quick Installation Guide
- CD ROM with:
- • Installation Wizard
• Product Documentation
Hard drive(s) not included with DNS-325 model. DNS-325-110 includes 1 x 1TB SATA drive. An internal 3.5" SATA drive is required to store or share files and must be formatted before use. RAID 0 and RAID 1 require the use of two (2) SATA drives. To avoid drive incompatibility in RAID 0 or RAID 1 operation, use SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lower-sized drive. May not work with older generation SATA drives. For a list of SATA drives that have been tested to work with the DNS-325 visit the FAQs section.
Use of an FTP Server over the Internet does not provide secure or encrypted transmissions, unless the end user enables SSL authentication in their FTP client.
D-Link cannot guarantee full compatibility or proper playback with all codecs. Playback capability depends on the codec support of the UPnP AV media player.
24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
D-Link makes no warranty as to the availability, reliability, functionality, and operation of the iTunes Server feature.
*3-Year Limited Warranty available only in the USA and Canada.
**Computer must adhere to Microsoft's recommended System Requirements.
All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside package for warranty details.
